click to zoom| Ditambahkan | 08.00 |
| Kategori | Gps Gps geodetic Produk |
| Harga | Hubungi Kami @ Jual GPS Geodetic Hi Target V30 GNSS RTK Key features 1). BD970 GNSS engine 2). Support GPS, GLONASS, BDS, GALILEO ... |
| Share | |
| Hubungi Kami | |
| BELI |
Review GPS Geodetic Hi Target V30 GNSS RTK semarang
Hubungi Kami @
Key features
Detail advantage functions
Telp : 024-76676094
Hp : 081318352259
Email : indosurtasemarang(at)gmail.com

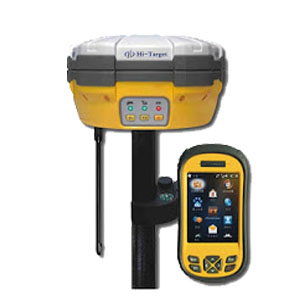

Jual GPS Geodetic Hi Target V30 GNSS RTK
- 1). BD970 GNSS engine
- 2). Support GPS, GLONASS, BDS, GALILEO
- 3). Rugged design and user-friendly functions
Detail advantage functions
- Multi-constellation tracking
- 220 tracking channels
- Supports GPS, GLONASS, BDS, SBAS
- NGS approved GNSS antenna
- Intelligent operation
- Equipped with a smart speaker guiding the whole operation
- Multi one-button functions make fieldwork easier, such as auto base setup by one button, the rover can get fix solution once it is turned on
- Diversify RTK application
Optional transceiver UHF radio
- The transceiver UHF radio enables the working mode to be switchable between base and rover
- Removable internal UHF radio enables users to fix or exchange simply Seamless operation in CORS system
- Built-in GPRS/GSM/3G module ensures that the V30 works perfectly with network RTK positioning
- Long-life battery
- Powered by 5000mAh Li-ion battery
- Static working time 13 - 15 hours
- RTK Rover (UHF/GPRS/GSM) working time 10 - 12 hours
- RTK Base working time 8 - 10 hours
- Rugged and unique design
- IP67 dust/water protection
- Withstands 3-meter natural fall onto concrete
- Rapid tracking and perfect avoidance or reduction of obstruction and multipath effect to ensure superior positioning capability.
Communication
- GPRS/GSM or 3G
- Fully integrated, fully sealed internal GPRS/GSM or 3G
- Network RTK (via CORS) range 20-50km
- HI-TARGET internal UHF radio (standard)
- Frequency :460 MHz with 116 channels
- Transmitting power :0.1W, 1W, 2W adjustable
- Transmitting Speed :Up to 19.2Kbps
- Working range: 3~5Km typical, 8~10km optimal
- HI-TARGET External UHF radio (standard)
- Frequency : 460 MHz with 116 channels
- Transmitting power : 5W, 10W, 20W, 30W adjustable
- Transmitting Speed : Up to 19.2Kbps
- Working Range : 8~10Km typical, 15~20km optimal
- Support other external communication device
- For example, external GSM modem
Data storage
- 64MB internal memory
System configuration
iHand20
- OS: Android 4.2
- Processor:MT6589, 1.5GHz, 4core
- RAM:1GB
- Flash memory:4 GB
Qmini MP
- OS: Windows Mobile 6.5
- Processor: 806MHz
- RAM: 256MB
- Flash memory: 8 G
- Communication interface
iHand20
- Bluetooth
- Mini USB
- WIFI:802.11b/g
- MicroSD card slot, support up to 32 GB
- Dual Sim Dual Standby, support 2G and 3G
Qmini MP
- Bluetooth
- Mini USB
- WIFI:802.11b/g
- MicroSD card slot, support up to 32 GB
- Built-in 3G module
Power supply
- iHand20
- 7V, 6300mAh lithium battery, up to 25 hours continuous work
- Qmini MP
- 7V, 3100mAh lithium battery, up to 8 hours continuous work
Physical properties
- iHand20
- Physical keyboard.Size:213mm x 89mm x 35mm
- Weight:520g (with battery)
- Operating temperature: -20℃ to +55℃
- Storage temperature:-30℃ to +65℃
- Water/dustproof: IP68
- Anti-shock: 1.2m natural fall
- Qmini MP
- 10 keys, include the four arrow keys
- Size: 152mm x 82mm x 32mmWeight: 315g (with battery)
- Operating temperature:-20℃ to +70℃
- Storage temperature: -30℃ to +80℃
- Water/dustproof: IP65
- Anti-shock: 1.5m natural fall
